Infotainment CANBUS ID's

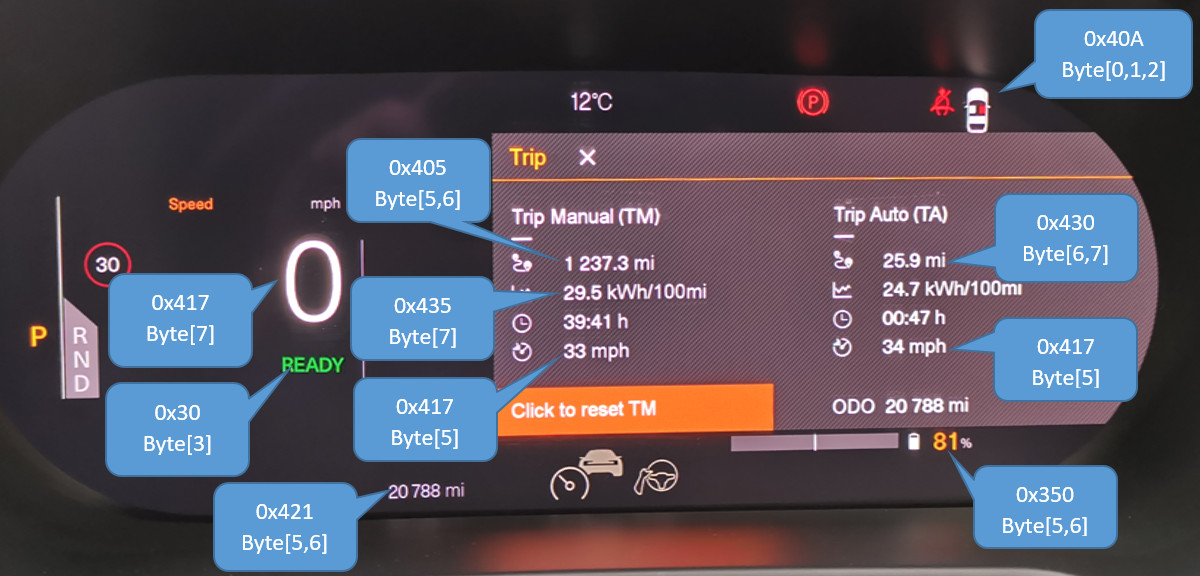

Click on the Can-ID for more information
| Can-ID | Length | DATA Packet HEX | DATA Packet DECIMAL | Register Description | |
|---|---|---|---|---|---|
| 0x10 | 4 | 05 00 00 00 | 005 000 000 000 | Static | |
| 0x29 | 8 | 00 00 00 00 00 00 00 00 | 000 000 000 000 000 000 000 000 | Static | |
| 0x30 | 8 | 81 6D 00 00 01 21 5E 00 | 129 109 000 000 001 033 094 000 | Counter, Ignition Status, Range (km) | |
| 0x7D | 8 | 08 00 09 41 10 00 00 00 | 008 000 009 065 016 000 000 000 | ||
| 0x85 | 8 | 00 00 01 81 00 00 00 00 | 000 000 001 129 000 000 000 000 | ||
| 0x100 | 8 | E5 40 00 00 00 00 00 00 | 229 064 000 000 000 000 000 000 | ||
| 0x135 | 8 | 01 0F 02 02 06 FD 03 02 | 001 015 002 002 006 253 003 002 | Cell Health? [ Packet ID, Data ] | |
| 0x145 | 8 | 00 00 00 00 00 00 00 00 | 000 000 000 000 000 000 000 000 | Static | |
| 0x210 | 8 | 4B 00 00 4B 21 01 C1 01 | 075 000 000 075 033 001 193 001 | A/C status, Counter | |
| 0x215 | 8 | 00 00 18 00 40 00 00 00 | 000 000 024 000 064 000 000 000 | ||
| 0x217 | 8 | 00 00 00 00 00 00 00 00 | 000 000 000 000 000 000 000 000 | Static | |
| 0x235 | 8 | 01 4C 50 53 56 53 45 44 | 001 076 080 083 086 083 069 068 | VIN [ Packet ID, Data ] | |
| 0x243 | 8 | 10 DC 68 00 00 00 00 00 | 016 220 104 000 000 000 000 000 | Range (Miles) | |
| 0x245 | 8 | 00 03 86 00 00 00 00 00 | 000 003 134 000 000 000 000 000 | 12V Battery voltage | |
| 0x350 | 8 | B8 00 00 00 00 3D CC 55 | 184 000 000 000 000 061 204 085 | Ignition, % remaining (Main battery) | |
| 0x355 | 8 | C2 58 80 00 00 00 90 00 | 194 088 128 000 000 000 144 000 | ||
| 0x397 | 8 | 74 55 54 15 B4 00 AC 00 | 116 085 084 021 180 000 172 000 | Door Status (Partial) | |
| 0x39A | 8 | 90 00 00 00 00 00 00 00 | 144 000 000 000 000 000 000 000 | ||
| 0x39C | 8 | B0 00 00 00 00 00 00 00 | 176 000 000 000 000 000 000 000 | ||
| 0x405 | 8 | B5 CE DB 7E B6 03 61 51 | 181 206 219 126 182 003 097 081 | Trip Distance, Service Countdown [ Days, KM ] | |
| 0x40A | 8 | B5 B4 B4 55 55 58 10 C0 | 181 180 180 085 085 088 016 192 | Door Status (Full) | |
| 0x417 | 8 | DC 00 04 00 0A 22 0A 0E | 220 000 004 000 010 034 010 014 | Speed (MPH), Average Speeds (MPH) | |
| 0x41C | 8 | 34 75 47 19 8F FF 0C 98 | 052 117 071 025 143 255 012 152 | 1/10 Second counter, Countdown | |
| 0x421 | 8 | 40 00 40 00 E0 7B 92 00 | 064 000 064 000 224 123 146 000 | Odometer | |
| 0x430 | 8 | 00 00 F7 C2 00 0A 01 A1 | 000 000 247 194 000 010 001 161 | Trip Auto (TA) distance (km) | |
| 0x433 | 8 | 18 45 11 9E 17 3A 2E 00 | 024 069 017 158 023 058 046 000 | Motor RPM | |
| 0x435 | 8 | 58 09 97 35 13 30 20 B1 | 088 009 151 053 019 048 032 177 | Date / time, Trip Manual (TM) average energy | |
| 0x437 | 8 | 04 00 00 00 00 00 00 00 | 004 000 000 000 000 000 000 000 | Static | |
| 0x439 | 8 | 2D A5 55 55 54 00 00 00 | 045 165 085 085 084 000 000 000 | ||
| 0x52D | 8 | 2D 41 40 00 00 00 00 00 | 045 065 064 000 000 000 000 000 | ||
| 0x535 | 8 | 35 50 40 04 00 00 00 00 | 053 080 064 004 000 000 000 000 | ||
| 0x572 | 8 | 8A 14 B5 FF 00 70 5F 04 | 138 020 181 255 000 112 095 004 | ||
| 0x573 | 8 | 5E 41 41 FF 82 52 0D 41 | 094 065 065 255 130 082 013 065 |
Access point

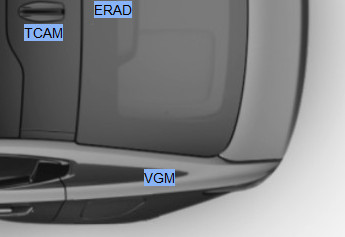

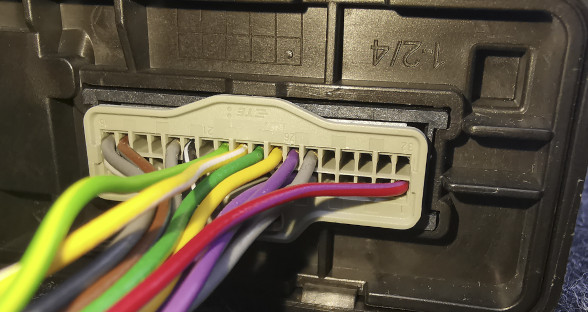

The infotainment CANBUS can be accessed at the VGM module in the boot / trunk of the car

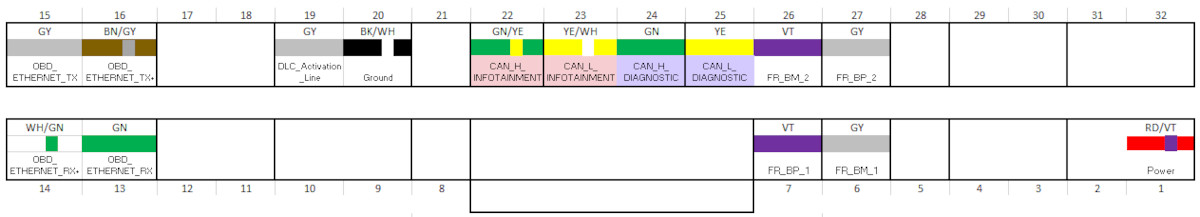

Pins 22 and 23.
It can also be accessed at the TCAM, but that involves removing roof lining.
